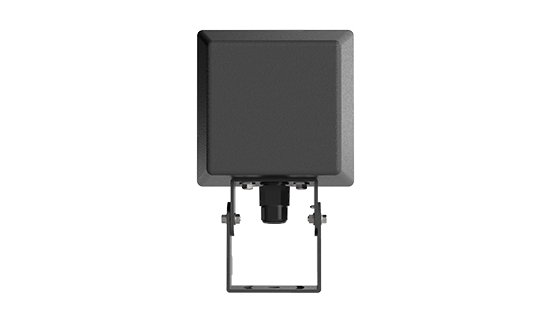

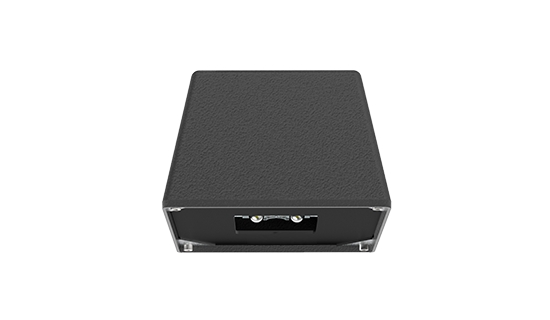

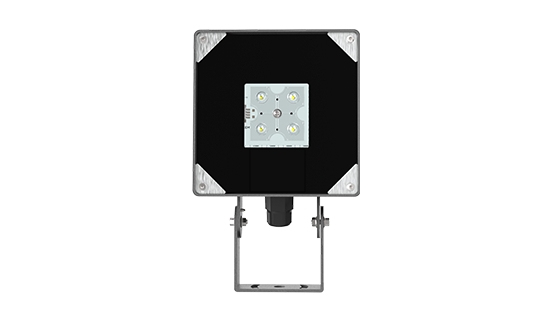

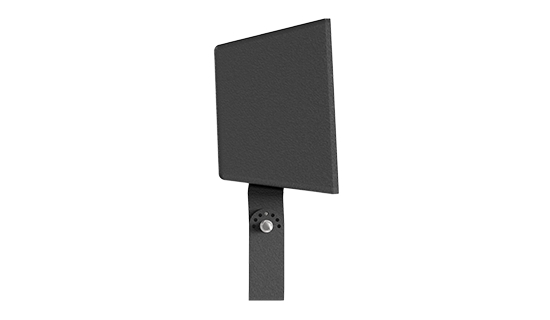

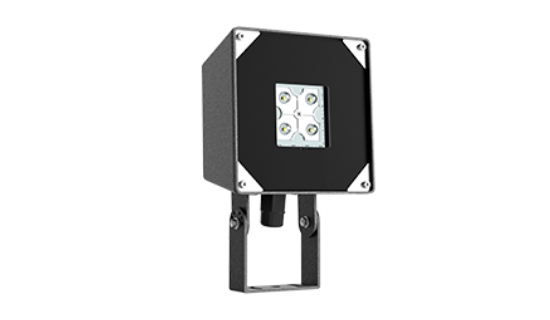

ProPaq NL2002
Die-Cast Aluminium Bostäder
ALLMÄN INFORMATION
| Monteringsmodul | Bracket system |
| Driftstemperatur | -40°C / +55°C -40°C / +70 (optional) |
| Förvaringstemperatur | -40°C / +80°C |
| Glass Mounting Options | Capsule mounting system |
| LED-moduler | Removable / Replaceable optical unit |
| Objektivalternativ | COL 1550 (standard) Project-specific lens selection |
| Huvudreferens Företagets riktlinjer | EN 60598-1, EN 60598-2-5, EN 62471, EN 60068-2-11, EN60068-2-52, 1509227, ASTM B117, ASTM D3359-78, 150 4628-2, 150 4628-4, EN 60529, EN 62262, AN51C136.10-2017, AN51 C136.2-2018, EN 62031, IEC 62384, ASTM D3359, EN 150 2409, IE5 LM 80-15, IE5 LM 82-12, IE5 LM 84,14, IE5 LM 85-14, IE5TM 21-11, 1509001, 15014001, 15018001, 1505001, TURKAK |
ELEKTRISK INFORMATION
| Elkurs | Class I, Class II (optional |
| Nominell spänning | 220-240V 50 / 60 Hz EU 110-277V 50 / 60 Hz (optional) NORTH AMERICA |
| Ljusström | 700 mA , 1050 mA |
| Effektfaktor | ≥0.9 (at full load) |
| Förare | Constant current, thermal protected, voltage regulated, harmonic filter protection |
| Surge protection options (kV) | 6 Kv (standard) 10 kV (optional) with LED signal and thermo fuse to disconnect load at the end of life 20 kV (optional) with LED signal and thermo fuse to disconnect load at the end of life |
| Styrsystem | On-off (standard), Bluetooth, DALI, 1-10V DIM, stand alone automation |
| Mains connection | For cable max section 2,5 mm2 Outgoing cable H05RN-F 2/3/5 x 1,5 mm2 Length on request.(optional) |
| Electromagnetic compatibility (EMC) | IEC 61000, EN 55015, IEC 61000-3-2, IEC 61000-4-5, IEC 61547, IEC 61000-3-3, IEC 61000-4-2, IEC 61000-2-2, IEC 61000-4-11, IEC 61643-ll |
BOENDE OCH MATERIAL
| Bostäder | Non corressive high pressure die-cast aluminium |
| Optic | PMMA or PC |
| Gasket | Silicon or polyurethane without junction points. |
| Bostäder Finish | UNI EN1706 powder painted |
| Refractor | Tempered glass min. 4mm high transparecy UV resistant (optional) |
| Cable Gland | IP66 ,Plastic PG9, IP67 (optional), IP68 (optional) |
| Standard Colour | RAL7021 Metalic |
| Tightness Level | IP66, IP67 (optional), IP68 (optional) |
| Impact Bostäder Resistance | IK10 (20 J) |
| Impact Glass Resistance | IK08 (5 J), IK09 (optional) (10 J), IK10 (optional) (20 J) |
| Vibration Test | Compliant with modified IEC 68-2-6 (0.5G), ANSI C136.31 (3G-5G |
OPTISK INFORMATION
| Led colour temperature | 2700K (warm white), 3000K (warm white), 4000K (neutral white) (standard), 5000K (cool white), 5700K (cool white), 6500K (cool white), Other (amber, blue, green, red) |
| Colour rendering ındex (CRI) | CRI ≥70, CRI ≥80 (optional), CRI ≥90 (optional) |
| Upward light output ratio | 0% |
| Photobiological safety class | IEC 62471, EN 62778 EXEMPT GROUP |
| Testing standard | LM 79-19 , EN 13032-1 (all measurements in ISO17025 accredited laboratory) |
| Lifetime of the LED's | Tq= 25 ° , 700 Ma 187.000h - L90B10 Tq= 55 ° , 700 Ma 156.000h - L90B10 |
